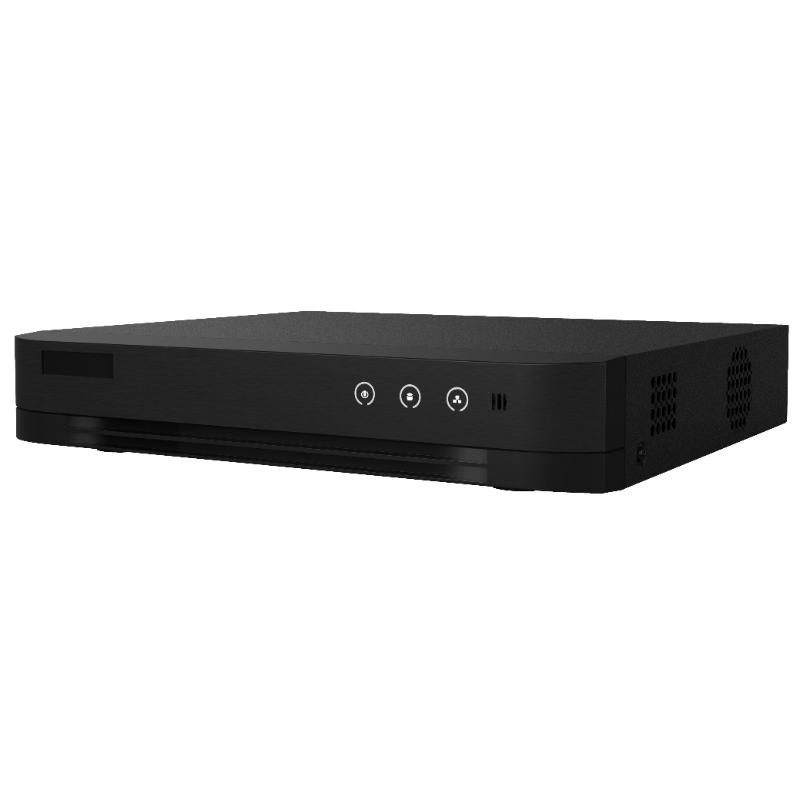

DS-7204HQHI-K1/E

產品詳細

4-ch 1080p 1U H.265 DVR

  • 4 channels and 1 HDD 260 case DVR

  • Efficient H.265 pro+ compression technology

  • Encoding ability up to 1080p @ 15 fps

  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

  • Up to 6 network cameras can be connected.






  • Recording

  • Encoding resolution

    When 1080p lite mode is not enabled:

    4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF

    When 1080p Lite mode is enabled:

    4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF



  • Video bit rate32 Kbps to 6 Mbps

  • Frame rate

    Main stream:

    When 1080p Lite mode is not enabled:

    For 4 MP stream access:

    4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

    For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

    For 1080p stream access:

    1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    When 1080p Lite mode is enabled:

    4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    Sub-stream:

    WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)



  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

  • Dual streamSupport

  • Stream typeVideo, Video & Audio

  • Audio compressionG.711u

  • Audio bit rate64 Kbps

  • Video and Audio

  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable

  • Audio output1-ch, RCA (Linear, 1 KΩ)

  • Synchronous playback4-ch

  • IP video input

    1-ch (up to 5-ch)


    Enhanced IP mode on:

    2-ch (up to 6-ch), each up to 4 Mbps

    Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras


  • HDTVI input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.

  • HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30

  • CVBS inputPAL/NTSC

  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

  • Analog video input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30

  • CVBS outputN/A

  • HDMI/VGA output

    HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output

    VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz


  • Network

  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

  • Remote connections32

  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface

  • Auxiliary interface

  • CapacityUp to 10 TB capacity for each disk

  • Serial interfaceN/A

  • USB interface2 × USB 2.0

  • Alarm in/outN/A

  • SATA1 SATA interface

  • General

  • Consumption(without HDD)≤ 5 W

  • Working humidity10% to 90%

  • Power supply12 VDC

  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)

  • Dimensions(W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

  • Weights (without HDD)≤ 1.6 kg (3.5 lb)
