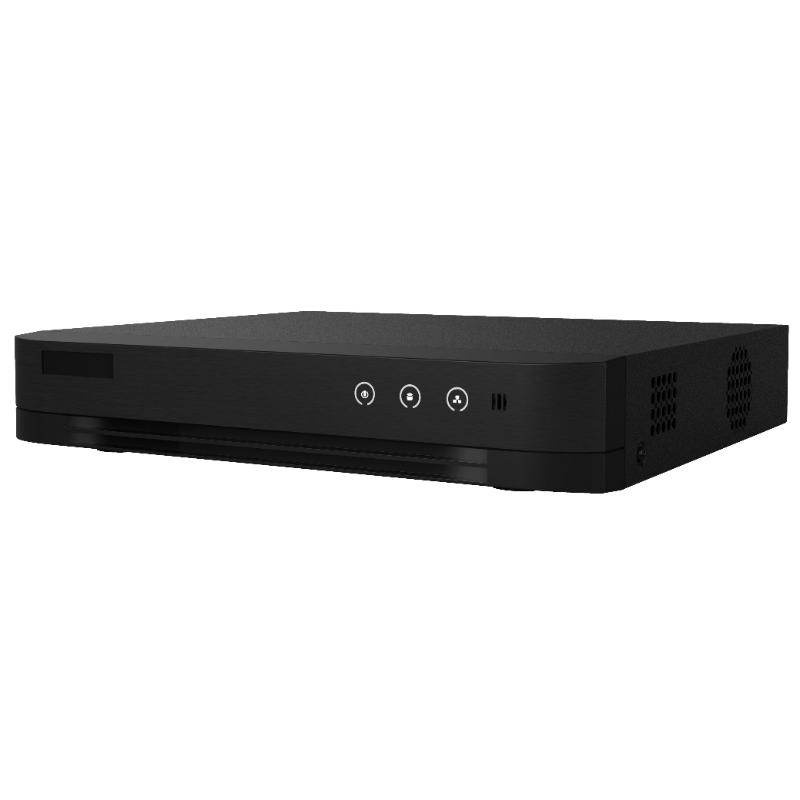

iDS-7208HQHI-M1/E

4-ch 1080P 1U H.265 AcuSense DVR

• Deep learning based human and vehicle targets classification of Motion Detection 2.0

• Deep learning-based perimeter protection

• H.265 Pro+/H.265 Pro/H.265 video compression

• HDTVI/AHD/CVI/CVBS/IP video inputs

• Audio via coaxial cable

• Up to 12-ch IP camera inputs (up to 6 MP)

• Encoding ability up to 3K/5M Lite @ 12 fps

• Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;




• Perimeter Protection

• Human/Vehicle AnalysisUp to 4-ch

• Facial Detection

• Facial Detection and CaptureFace picture detection, face picture search

• Video and Audio

• IP Video Input

  2-ch (up to 10-ch)




  Enhanced IP mode on:

  4-ch (up to 12-ch), each up to 4 Mbps

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras







• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection




• HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

• AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

• HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

• CVBS InputSupport

• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• Video Output ModeHDMI/VGA simultaneous output

• Audio Input

  1-ch, RCA (2.0 Vp-p, 1 KΩ)

  8-ch via coaxial cable




• Audio Output1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

• Synchronous Playback8-ch

• Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF




• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)




• Video Bitrate32 Kbps to 6 Mbps

• Dual-streamSupport

• Stream TypeVideo, Video & Audio

• Audio CompressionG.711u

• Audio Bitrate64 Kbps

• Network

• Total Bandwidth96 Mbps

• Remote Connection64

• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

• Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

• Auxiliary Interface

• SATA1 SATA interface

• CapacityUp to 10 TB capacity for each disk

• Alarm In/OutN/A

• USB InterfaceReal panel: 2 × USB 2.0

• General

• Power Supply12 VDC, 1.33 A

• Consumption≤ 12 W (without HDD)

• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)

• Working Humidity10% to 90%

• Dimension (W × D × H)263 × 227 × 48 mm (10.4 × 8.9 × 1.9 inch)

• Weight≤ 1 kg (without HDD, 2.2 lb.)
