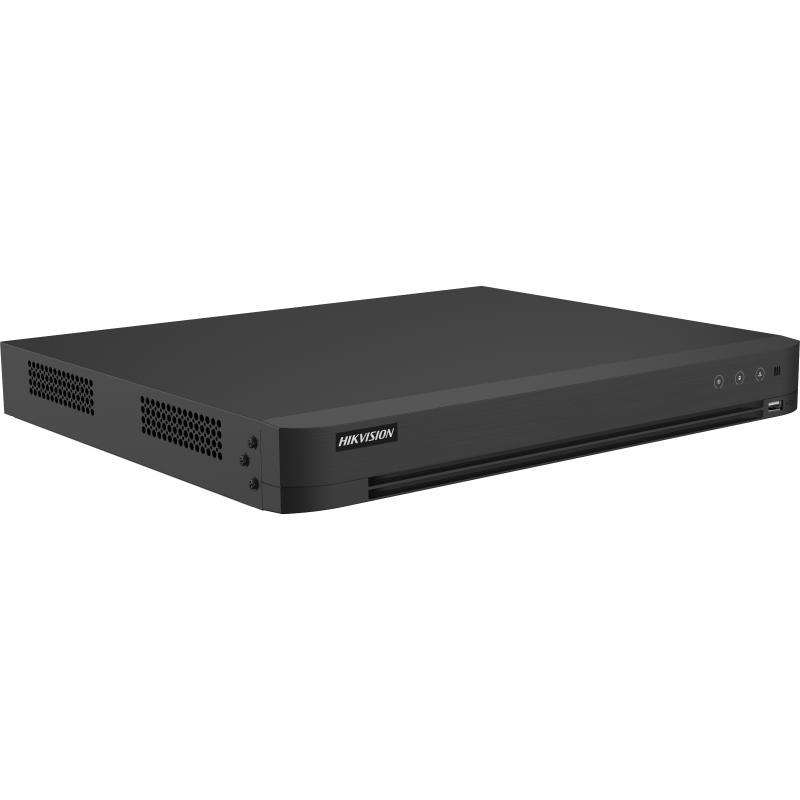

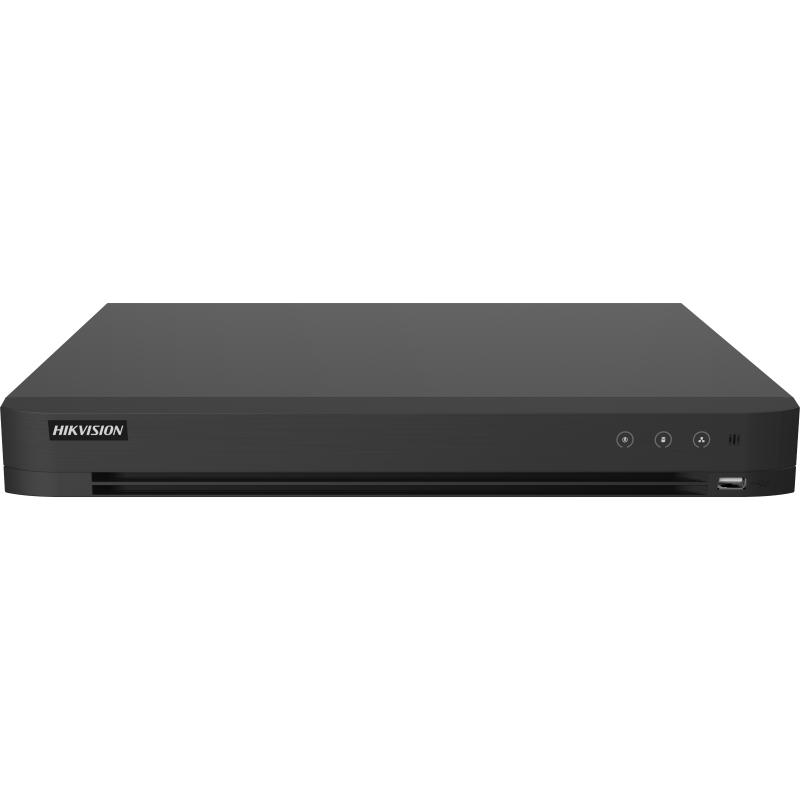

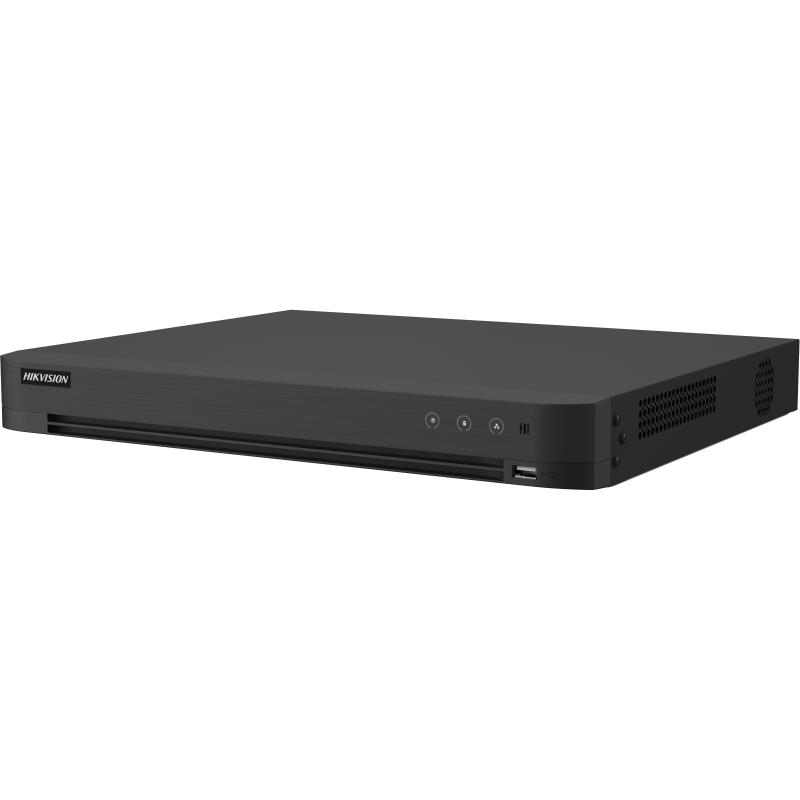

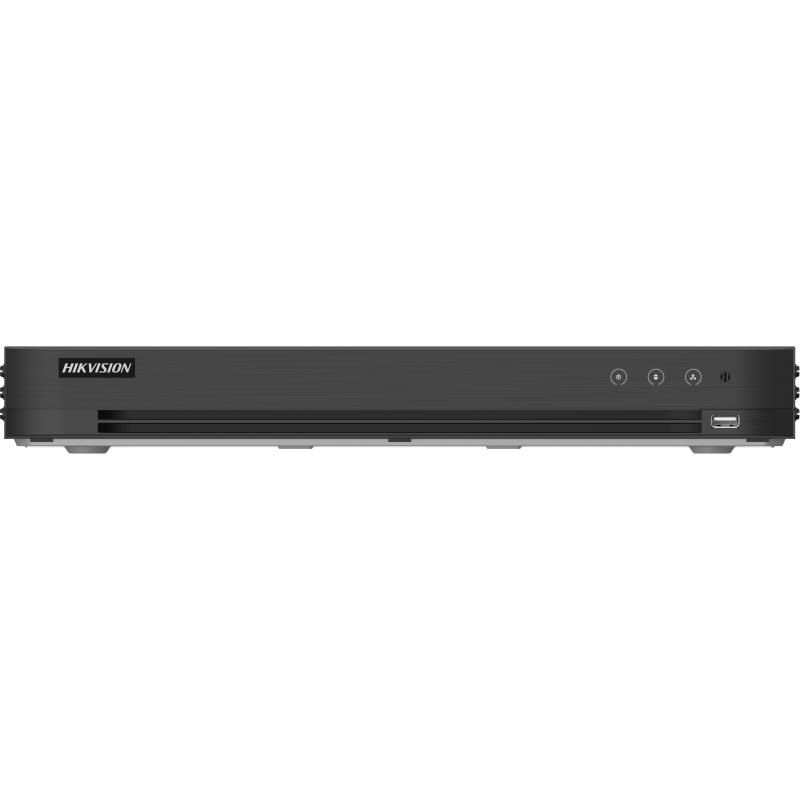

iDS-7216HQHI-M2/XT

16-ch 1080p 1U H.265 AcuSense DVR

• 16 channels and 2 HDD 1U AcuSense DVR

• Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm

• Support 8-ch AcuSearch Technology

• Efficient H.265 pro+ compression technology

• Encoding ability up to 3K/5MP Lite@12fps

• Up to 24 channels IP camera inputs, each channel up to 6MP

• Up to 24*1080P@30fps decoding ability

• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

• Support All channels Motion Detection Technology

• Support All channels HDTVI Two-Way Audio technology

• Facial Recognition

• Face Picture Library

  Up to 16 face picture libraries;

  HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.




• Face Picture Comparison4-ch face picture comparison alarm (HD analog camera)

• Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;




• Perimeter Protection

• Human/Vehicle AnalysisUp to 8-ch (advanced model)

• Facial Detection

• Facial Detection and Capture

  Face picture detection, face picture search；

  4-ch face picture capture




• Video and Audio

• IP Video Input8-ch (up to 24-ch), each up to 6MP

• Analog Video Input

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection




• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• CVBS InputPAL/NTSC

• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480




• Synchronous Playback16-ch

• HDTVI Input3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30 fps, 720P@25/30fps

• AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• HDCVI Input3K(2880×1620)@25/20fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

• Video Output ModeHDMI/VGA simultaneous output

• Audio Output1-ch, RCA (Linear, 1 KΩ)

• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)，16-ch via coaxial cable

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

• Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF




• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)




• Video Bitrate32 Kbps to 6 Mbps

• Dual-streamSupport main stream or sub stream

• Stream TypeVideo, Video & Audio

• Audio CompressionG.711u

• Audio Bitrate64 Kbps

• Decoding

• Decoding Capabilityup to 24-ch 1080P@30fps

• Network

• Total Bandwidth256 Mbps

• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

• Remote Connection128

• Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

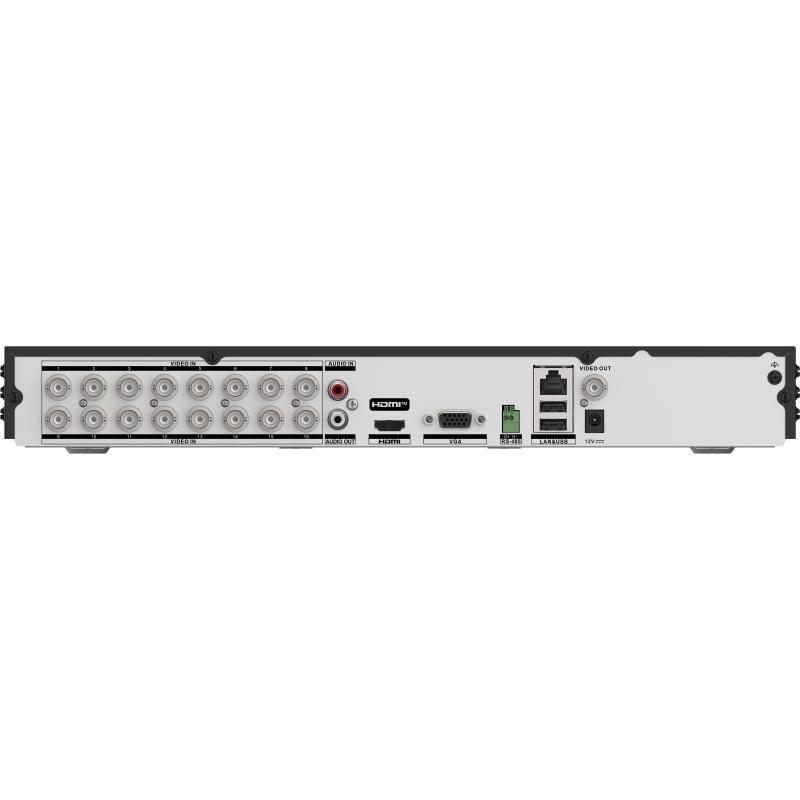

• Auxiliary Interface

• SATA2 SATA interface, up to 12 TB capacity for each disk

• Serial InterfaceRS-485 (half-duplex)

• USB Interface

  Front panel: 1 × USB 2.0;

  Rear panel: 2 × USB 3.0




• Alarm In/OutN/A (optional to support)

• General

• Power Supply12 VDC, 3.3 A

• Consumption≤40 W

• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity10% to 90%

• Dimension (W × D × H)384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)

• Weight≤ 2 kg (4.4 lb)
