DS-3E0326P-E/M(C)

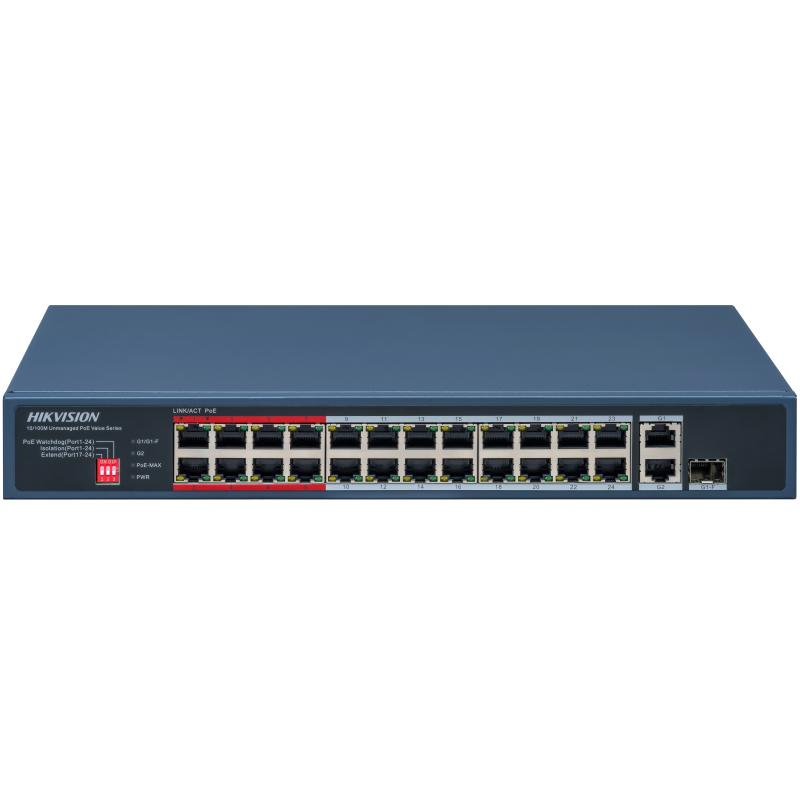

24 Port Fast Ethernet Unmanaged POE Switch

• Intelligent PoE Management When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.

• Up to 300 m Long Range PoE Transmission The distance between IPCs and switch can reach maximum 300 meters.

• 4/8-Core Adaptive Power Supply with Less Power Loss 8-core power supply reduces the power loss on cables

• 6 KV Surge Protection to Improve Reliability in Harsh Environment The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.

• Design for Video Transmission VIP port ensures important data transmission when network congestion occurs.

• General

• ShellMetal material

• Net Weight1.90 kg (4.20 lb)

• Gross Weight2.65 kg (5.84 lb)

• Dimensions (W × H × D)335.0 mm × 44.5 mm × 226.0 mm (13.19'' × 1.75'' × 8.90'')

• Operating Temperature0 °C to 45 °C (32 °F to 113 °F)

• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)

• Operating Humidity5% to 95% (no condensation)

• Relative Humidity5% to 95% (no condensation)

• Power Supply100~240 VAC, 50/60 Hz, Max. 4 A

• Max. Power Consumption250 W

• Power Consumption in Idle20 W

• Installation ModeDesk-Mounted,Wall-Mounted

• Surge Protection6 KV

• Network Parameters

• Ports24 × 10/100 Mbps PoE port,1× Gigabit RJ45 port,1 × Gigabit combo

• MAC Address Table8 K

• Switching Capacity8.8 Gbps

• Packet Forwarding Rate6.55 Mpps

• Internal Cache4 Mbits

• PoE Power Supply

• PoE StandardIEEE 802.3af;IEEE 802.3at

• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortPoE: Ports 1 to 24

• Max. Port Power30 W

• PoE Power Budget230 W

• Dialing Function

• Long Range

  Ports 17 to 24 : up to 300 m.

  Long range performance may vary depend on camera model or cable condition.




• Port Isolation

  Ports 1 to 24: port isolation mode to improve network security.

  Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.




• PoE WatchdogPorts 1   to 24: auto detect and restart the cameras that do not respond.

• Approval

• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

• Chemistry

  CE-RoHS (201165EU);

  WEEE (201219EU);

  Reach (Regulation (EC) No.19072006)
